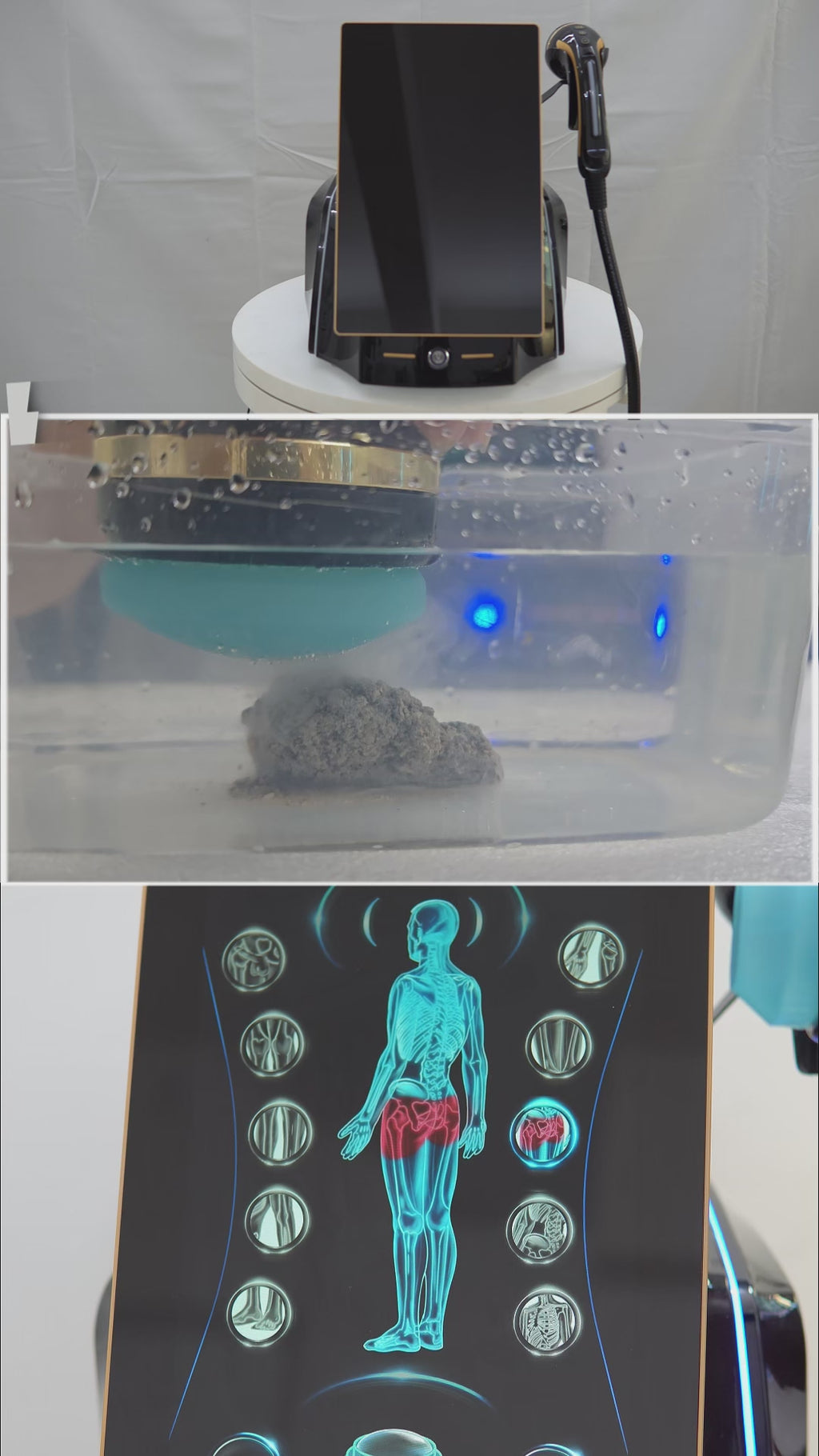

Non-invasive shockwave technology designed for precise pain relief and musculoskeletal rehabilitation.

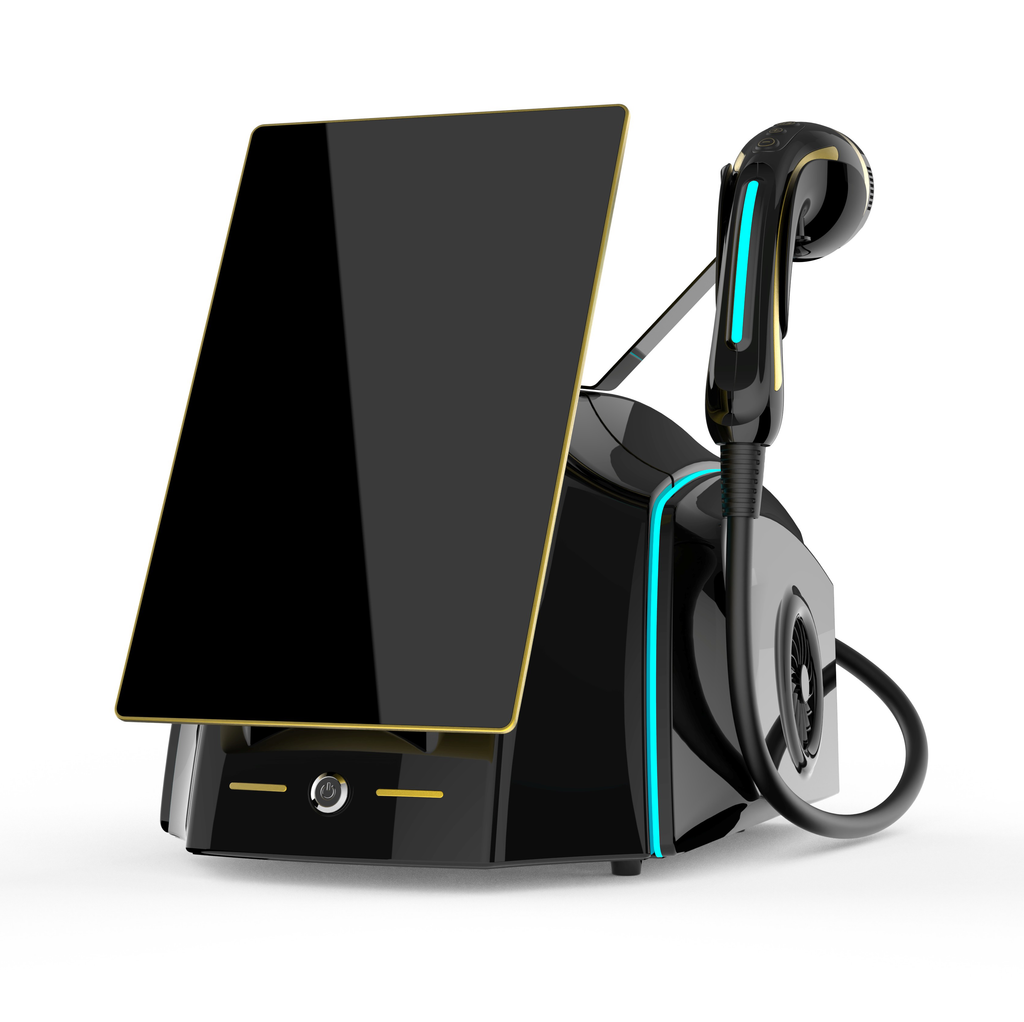

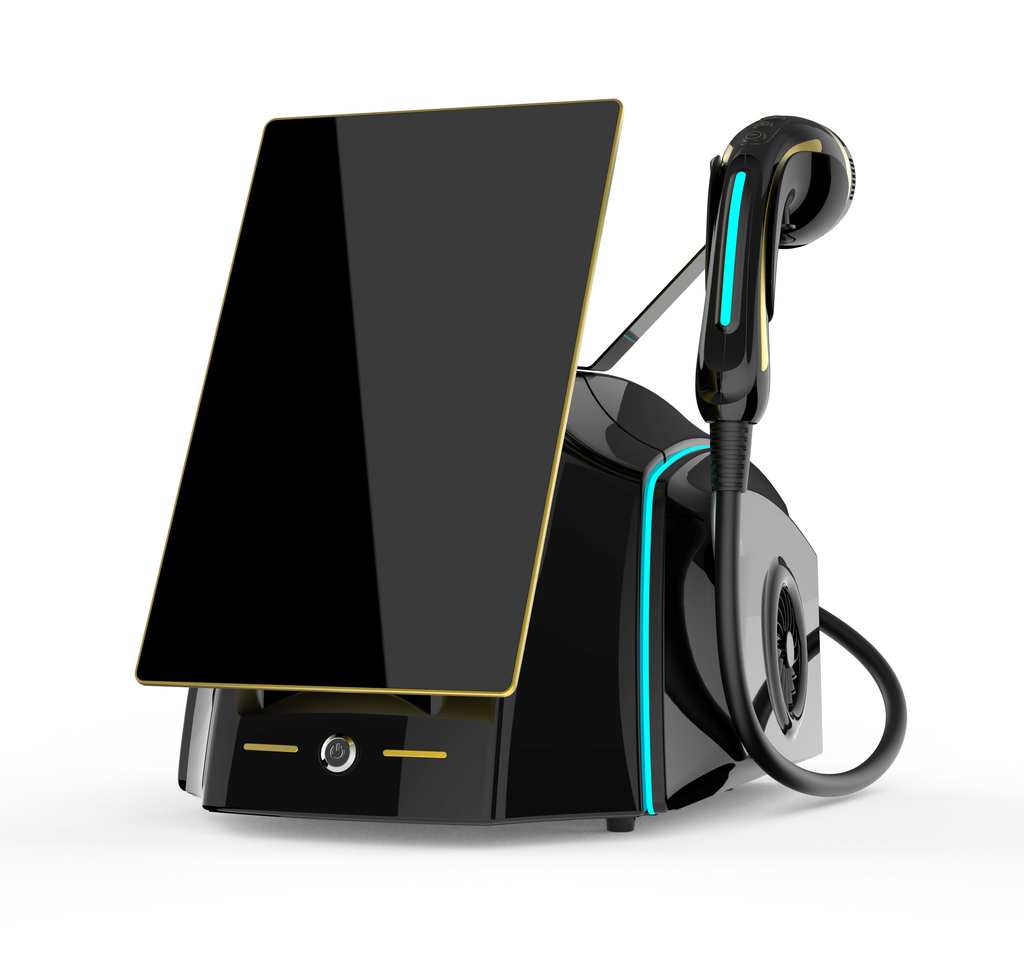

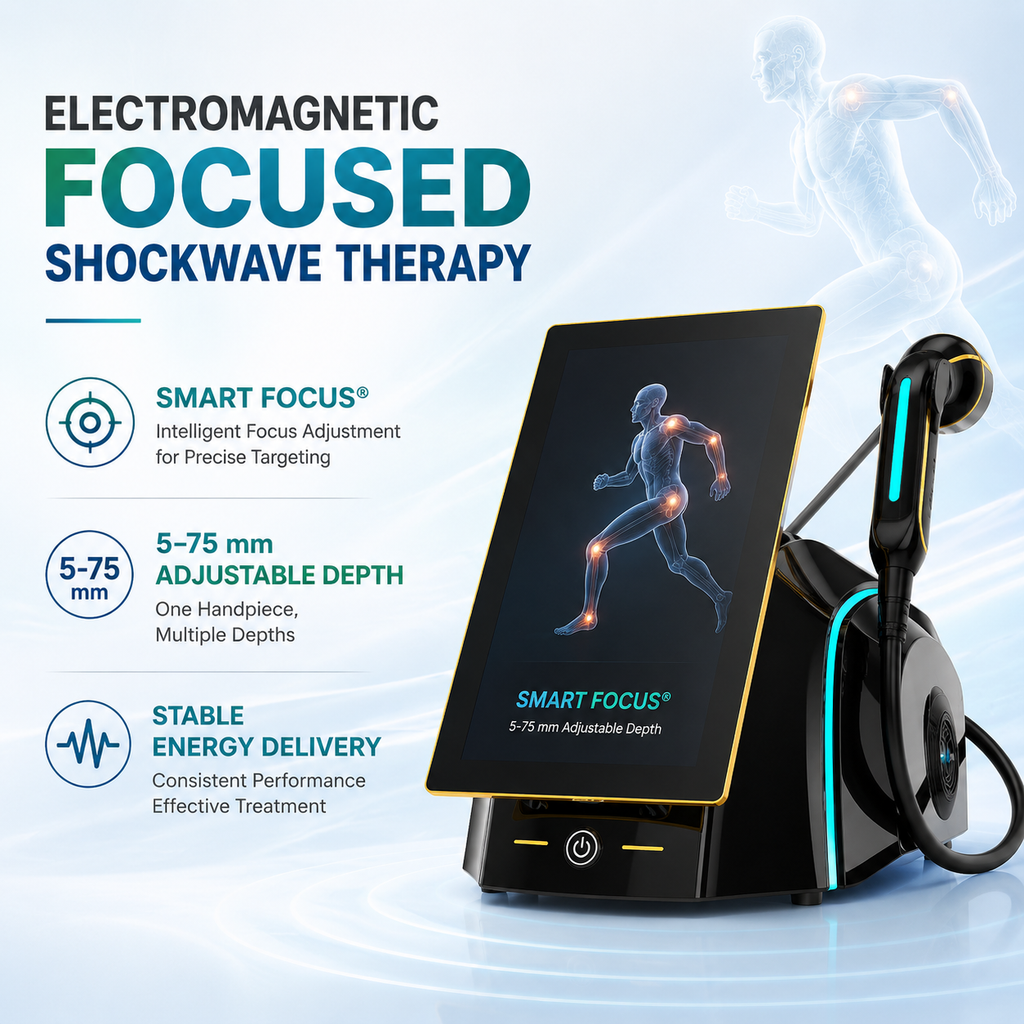

The A69 combines electromagnetic focused shockwave technology with Smart Focus® intelligent depth adjustment to deliver stable, precise energy exactly where it is needed. With an adjustable treatment depth of 5–75 mm from a single handpiece, practitioners can efficiently treat different tissue layers without changing applicators, providing greater flexibility and consistent performance for rehabilitation and pain management.
| Specification | Details |
|---|---|
| Product Name | Electromagnetic Focused Shock Wave Therapy Device |
| Model | A69 |
| Display | 15.6-inch Android LCD Touch Screen |

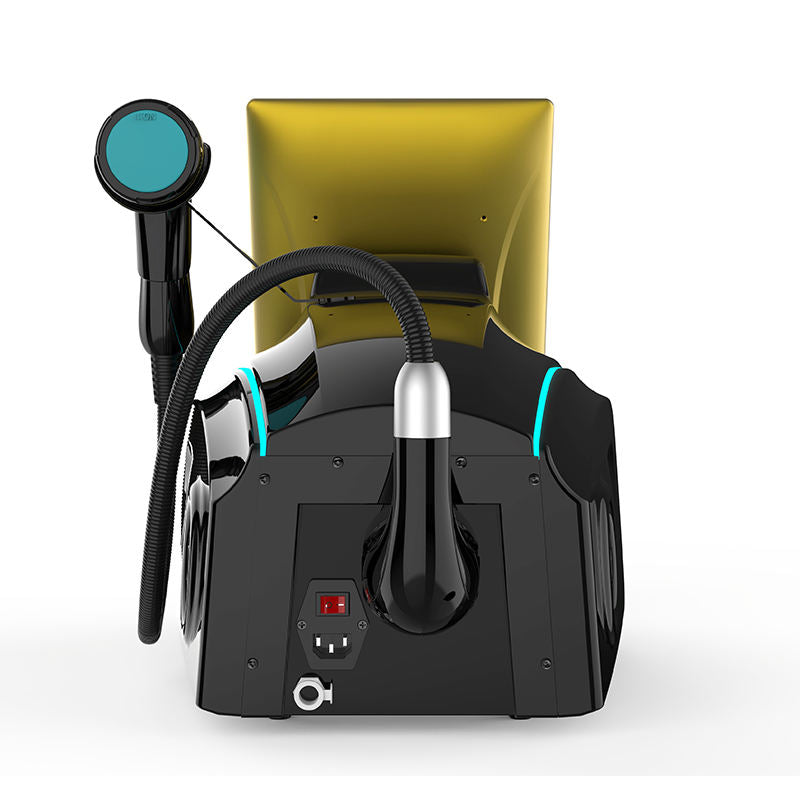

| Power Supply | AC 110–220 V (±10%) |
| Rated Power | 300 W |
| Operating Frequency | 1–15 Hz (Adjustable) |
| Energy Level | 1–20 Levels (Adjustable) |
| Product Dimensions | 59 × 65 × 45 cm |
| Total Weight | 25.5 kg |
Q: Is this a true electromagnetic focused ESWT system (no pneumatic or radial)?
A: Yes, this is a true electromagnetic focused shockwave system. It uses an electromagnetic generator and reflector, with no pneumatic or radial components.
Q: What is the measured EFD range at the focal point?
A: 0.03 – 0.8 mJ/mm² (typical clinical range: 0.005 – 0.32 mJ/mm²).
Q: What is the adjustable focal depth range and how is it achieved?

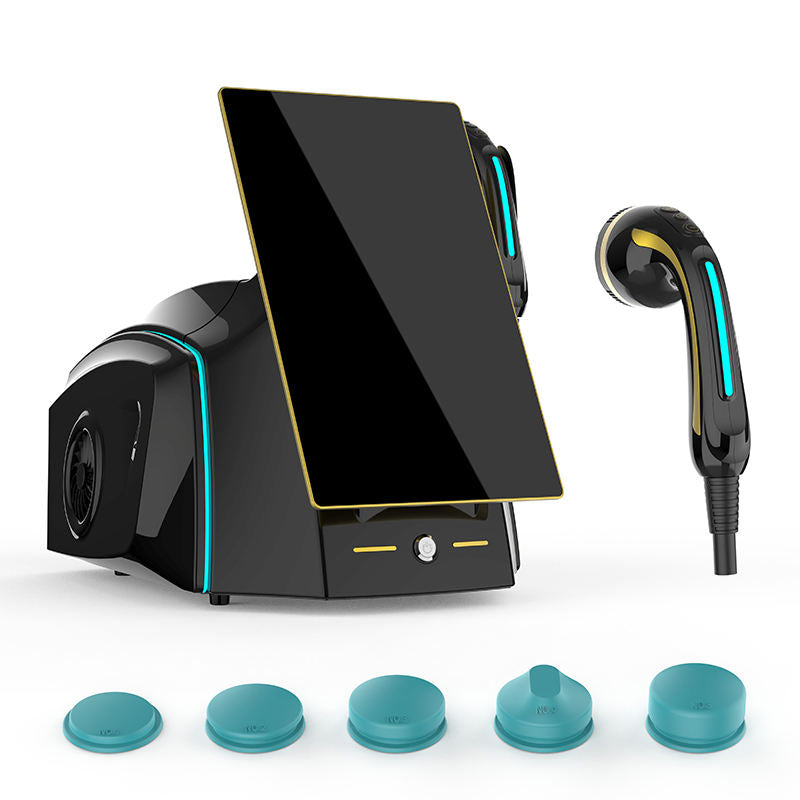

A: 5–75 mm, achieved through interchangeable treatment heads (not stand-off).
Q: What is the frequency range (Hz)?
A: 1–15 Hz (adjustable).
Q: What is the peak pressure at the focal point?
A: 49 – 90 MPa.
Q: What is the coil material, cooling system, and lifespan?
A: Copper coil, water-based cooling system, lifespan approx. 1,000,000 pulses.
Q: Does the system allow full manual control?
A: Yes, frequency, energy, and pulse count are all adjustable, with both preset and manual modes.
Q: What is the power and voltage?
A: 300W / 110–220V.
Q: Do you have CE/FDA/ISO certification?
A: CE available.
At KMSLASER, we stand behind the quality of every machine we build.
Whether you’re using it professionally or personally, you deserve reliable performance for years.
Coverage Details:• Main device: 2-year warranty from delivery date
• Spare parts: 6-month warranty from delivery date
Ongoing Support:After the warranty period ends, we continue to offer free technical guidance and spare parts at cost — no hidden fees, just lasting support.
We fully support to brand your logo on the machine screen software.
If you want to brand your logo on the machine case, then A nominal cost of $100 is required.
