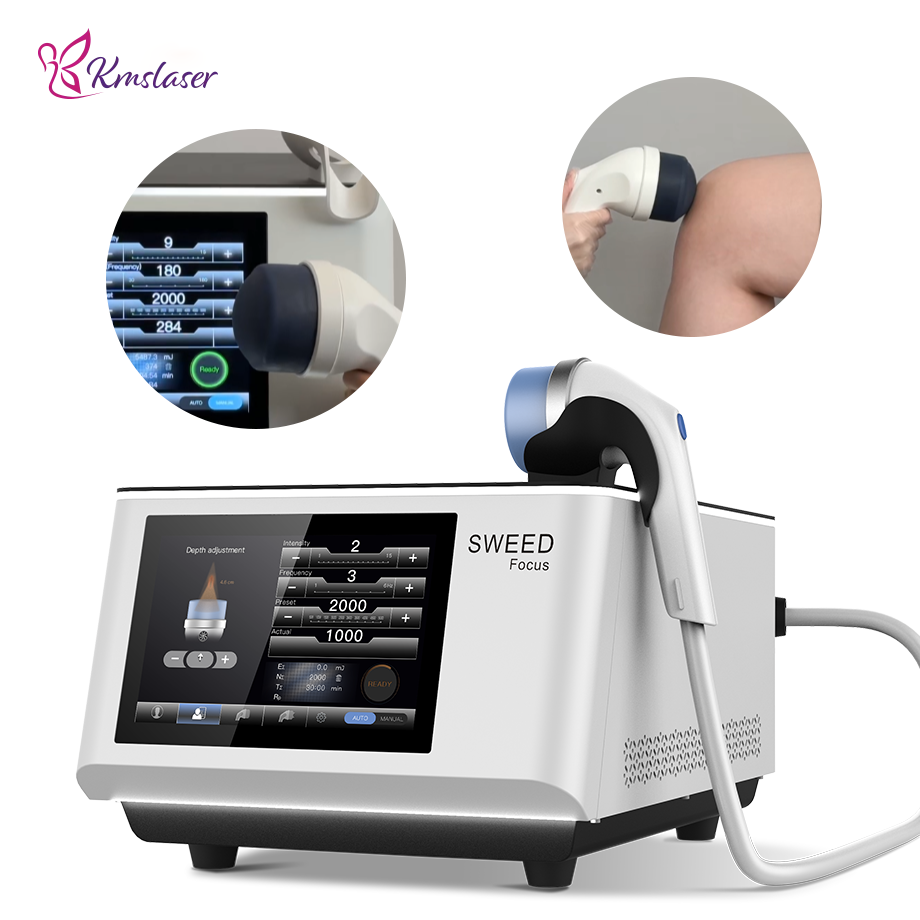

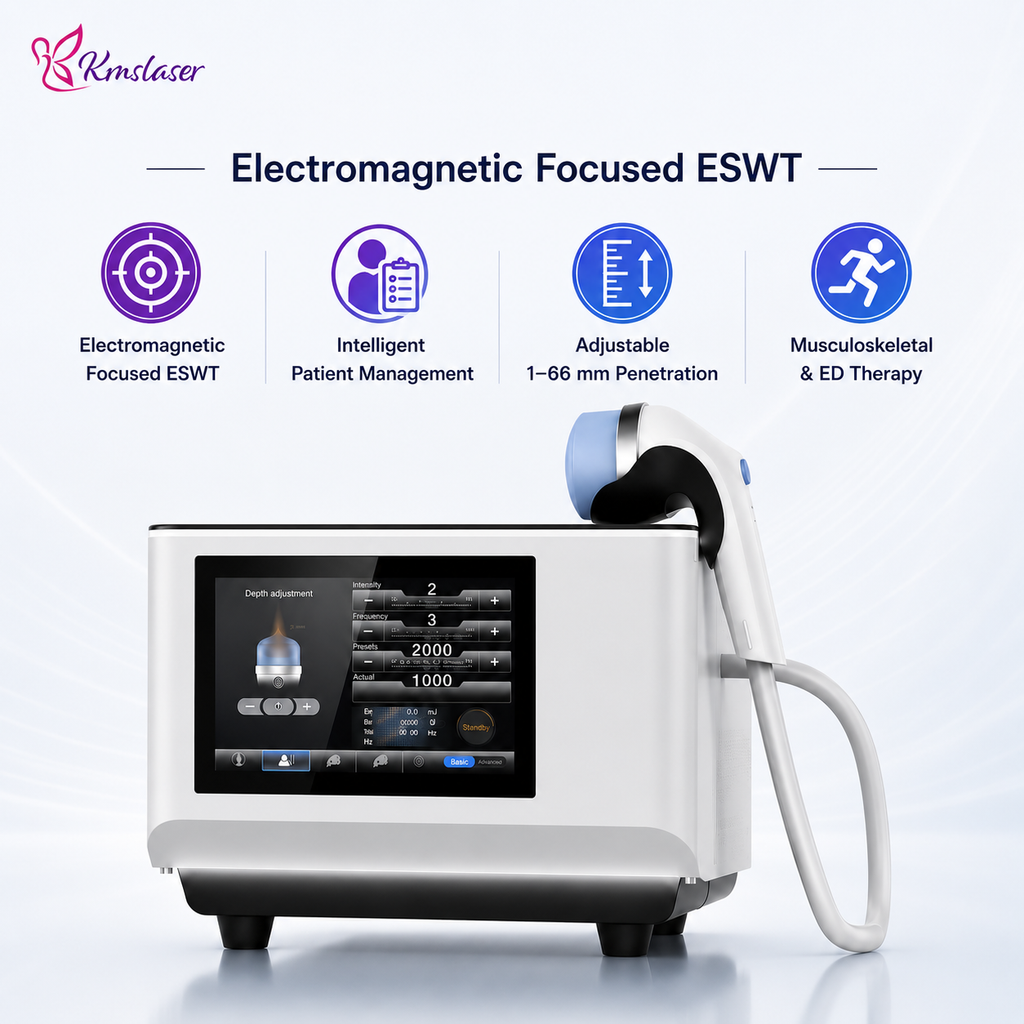

SW7 Electromagnetic Focused Shockwave Therapy System with Intelligent Patient Management
True Electromagnetic Focused ESWT with precise energy delivery for deep tissue rehabilitation and targeted pain relief.
Working Principle
The SW7 uses electromagnetic technology to generate focused shockwaves, which are concentrated through an acoustic focusing system and delivered precisely to the target tissue. The controlled energy promotes tissue regeneration, improves blood circulation, and supports natural healing while minimizing energy dispersion.
Treatment Applications
The SW7 is suitable for a wide range of focused shockwave applications, including:
- Neck Pain
- Shoulder Disorders
- Back Pain
- Hip & Buttock Pain
- Tennis Elbow
- Wrist & Hand Disorders
- Knee Pain
- Leg Pain
- Ankle Pain
- Plantar Fasciitis
- Erectile Dysfunction (ED)
The SW7 features an intelligent patient management system that helps clinics improve treatment efficiency and record keeping.
- Create and manage patient profiles
- Save treatment history
- Recall previous treatment parameters
- View treatment records and usage statistics
- Quickly search patient information

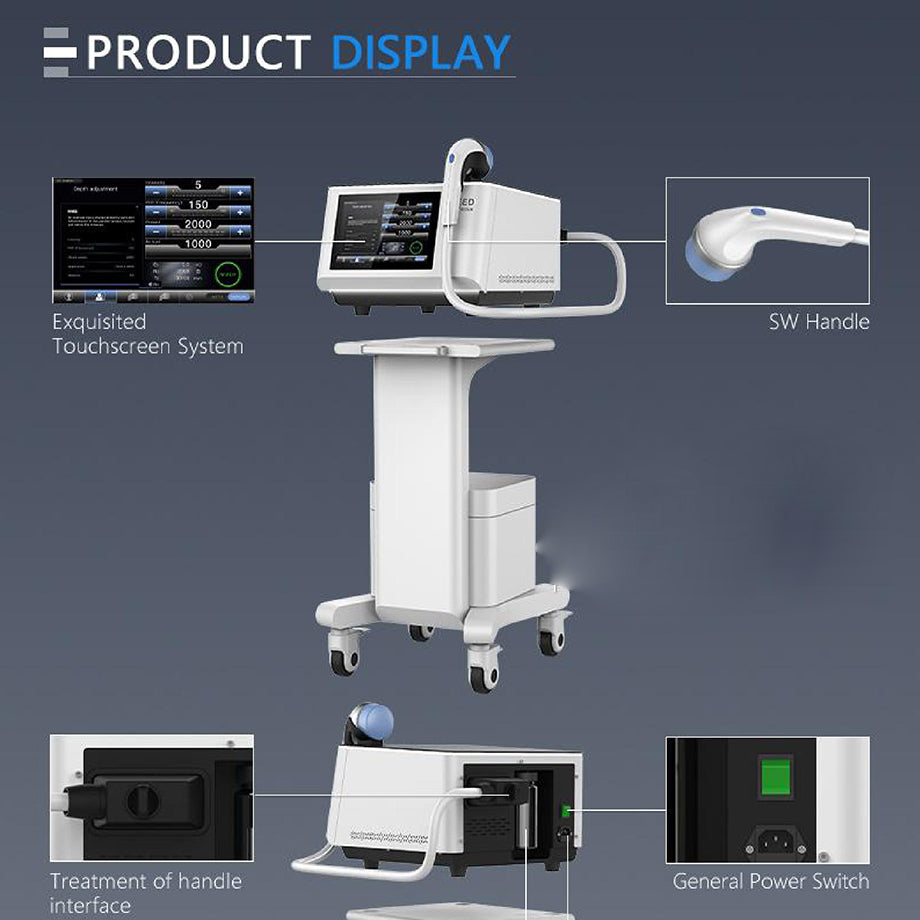

Available in both desktop and cart configurations — flexible placement to suit clinic layout and workflow.
| Specification | Details |
|---|---|
| Model Number | SW7 |
| Product Name | Shock Wave Therapy |
| Size | 390W × 465D × 280H mm |
| Voltage | AC220V-230V, 50/60Hz |
| Screen Display | 10.1 inch touch screen |
| Multiple Solution | 1.5, 2.0, 4.6 cm |
| Penetration Depth | 1.0 – 66 mm |
| Trigger Frequency | 60 – 180 times per minute |
-
Q: Is this a true electromagnetic focused ESWT device? Are there any pneumatic or radial components?
A: Yes, the SW7 is a true electromagnetic focused shockwave device. It uses an electromagnetic generator to drive a diaphragm and generate shockwaves, which are then focused through a reflector. There are no pneumatic or radial components involved. -
Q: Why choose focused ESWT instead of radial shockwave?
A: Focused ESWT delivers concentrated energy to a precise depth for targeted treatment of deeper tissues. Radial shockwave spreads energy over a broader, more superficial area, making it suitable for larger soft tissue treatment regions. The choice depends on the clinical application. -
Q: What is the measured EFD range at the focal point?
A: Measured EFD range at focal point: 0.03 – 0.8 mJ/mm². Standard clinical working range: 0.005 – 0.32 mJ/mm². This allows both low-energy (regenerative) and higher-energy therapeutic applications. -
Q: What is the adjustable focal depth range and how is it achieved?
A: The system supports an adjustable penetration depth of 5–75 mm, achieved through interchangeable treatment heads (probes) rather than stand-off distance. -
Q: What is the adjustable trigger frequency range?
A: The trigger frequency is adjustable from 60 to 180 times/min, allowing practitioners to adjust the treatment rhythm according to different clinical applications. Energy level and pulse count are also independently adjustable for flexible treatment settings. -
Q: What is the peak pressure at the focal point?
A: Peak pressure at the focal point: 49 – 90 MPa. -
Q: What is the coil material, cooling system, and expected lifespan?
A: The system uses a copper coil with a water-based cooling system, ensuring stable energy output and effective heat dissipation. Expected lifespan: approximately 1,000,000 pulses. -
Q: Can oscilloscope waveform or stability data be provided?
A: Oscilloscope waveform reports are not provided as standard, but the system ensures stable and consistent energy output across all energy levels. -
Q: Does the system allow full manual control of EFD, frequency, and pulse count?
A: Yes. The system supports both preset treatment protocols and full manual adjustment of frequency, energy (EFD level), and pulse count. -
Q: What is the total power and voltage range?
A: Rated power: 300W. Voltage: 110–220V. -
Q: Do you have CE/FDA/ISO documentation for this model?
A: Yes, the SW7 holds CE certification.
